Colorado Gimbal System for MOBI Vacuum

A high precision motion system was required to operate in the MOBI Vacuum Chamber at a High Vacuum level for Laboratory for Atmospheric and Space Physics (LASP).

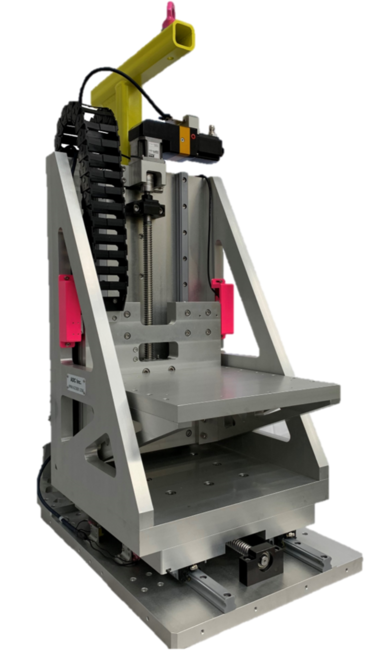

3-Axis Stage Stack

​A set of five (5) vertical lift stages (jacks), three (3) tilt stages (horizontal rotation axis), and three (3) rotation stages (vertical rotation axis) were delivered to the Cornell High Energy Synchrotron Source (CHESS) as three stacks containing one of each stage type, and two more lone jacks.

Additional details are provided for calculations, FEAs, frequency response, repeatability measurements, loading, testing, quality control, electronics instrumentation, and controls are available for each application on request. We hope you find our product line exceeds your needs and our friendly staff willing to satisfy your specific requirements.
Please do not hesitate to contact ADC for further details.


Cryostat Dilution Refrigerator
​A system was custom designed for the Free Electron Laser for Infrared eXperiments (FELIX)in Netherlands that provides both vertical (z) axis positioning and rotation about the z-axis of a Cryo-Free dilution refrigerator from Oxford Instruments (Kelvinox).

ADC has been a leading supplier of high quality systems to the synchrotron, neutron, FEL, and high radiation scientific community for over 18 years.

Many of our instruments have been in operation nearly that long in facilities around the world. From slits to undulators, ADC has provided instruments both inside and outside the shield wall.


Engineered Systems

Our engineering design, and build staff are well acquainted with the special requirements of the synchrotron and FEL scientific community such as shielding, stability, precise motion, and UHV.  ADC’s engineering staff approaches each new application by thoroughly understanding the risks, challenges, and requirements. Our intimate knowledge of synchrotron operations gives us a solid basis for “fling in the blanks” in our customer’s specifications. We have developed the art of project management to a high degree; thereby ensuring complex instruments are delivered on time.

Example Custom Systems
